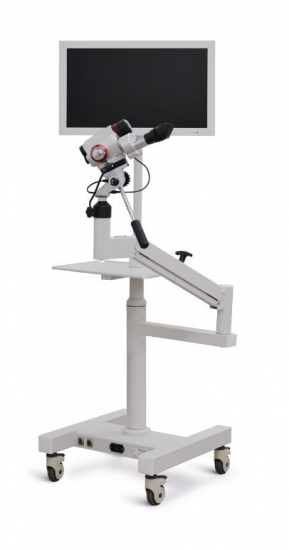

ALScope HD1 of 8

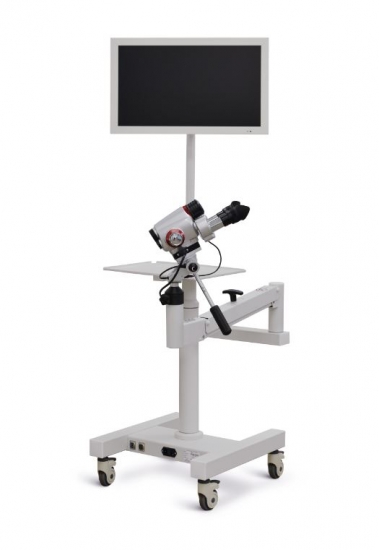

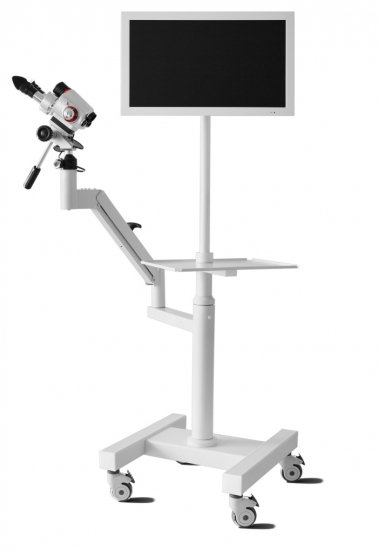

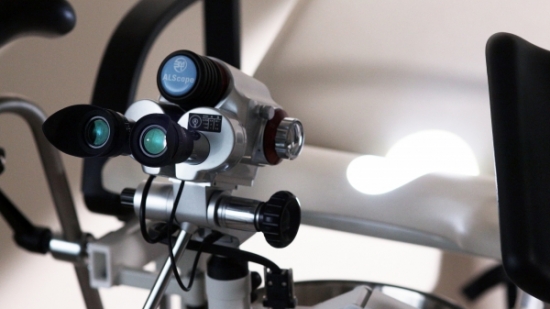

Binocular colposcope with video system
ALScope HD

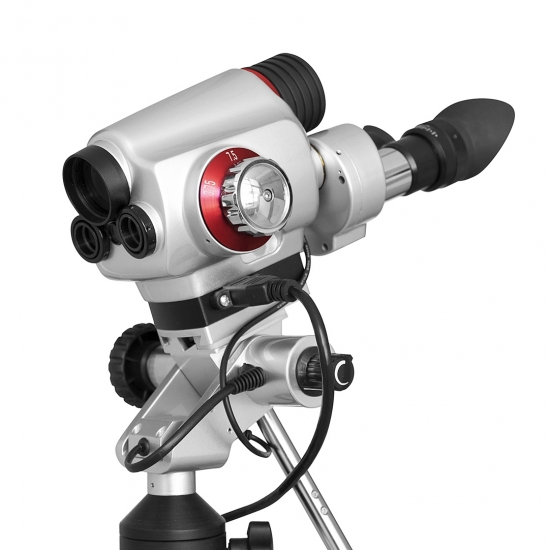

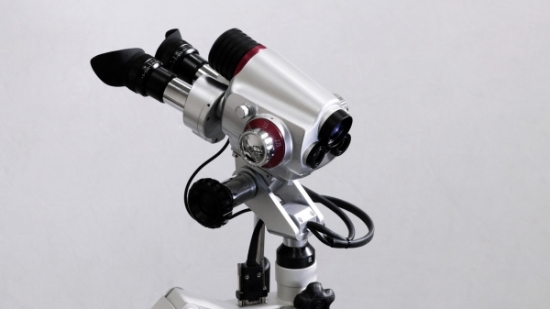

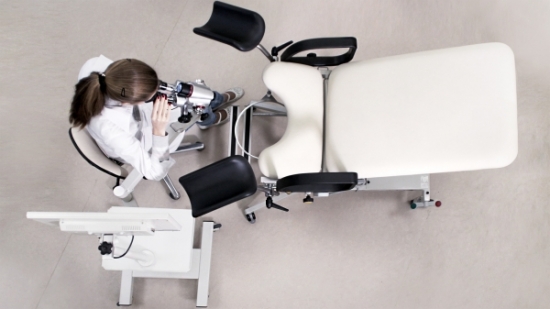

Optical binocular colposcope for diagnosing pathologies of the cervix and vagina. Based on a stereoscopic optical block providing a three-dimensional image of the examined area without color or geometric distortion. The image is displayed on a 21.5″ monitor and simultaneously transmitted to a PC via BMT GynLab software. Compatible with gynecological chairs of any type.
Three-step magnification: 3.75× / 7.5× / 15×
Coaxial LED illumination with daylight-like spectrum, lifetime > 10,000 h
Stereoscopic 16.7× eyepieces with individual adjustment
Built-in green filter for vessel contrast
21.5″ TFT LCD monitor + GynLab software recording
Stable 4-wheel base with swivel instrument table
Fine focusing and precise height adjustment
- Camera
- Built-in 2.3 MP
- Monitor
- TFT LCD 21.5″
- Magnification
- 3.75× / 7.5× / 15×
- Focal distance
- 300 mm
- Field of view
- 78 / 38 / 19 mm
- Depth of field
- 7.2 / 2.9 / 2 mm
- Illumination brightness
- 25,000 lx
- Eyepieces
- 16.7×, adjustable
- Filter
- Built-in green
- Light source
- LED
- Working height
- 850–1250 mm
- Net weight
- 40 kg
